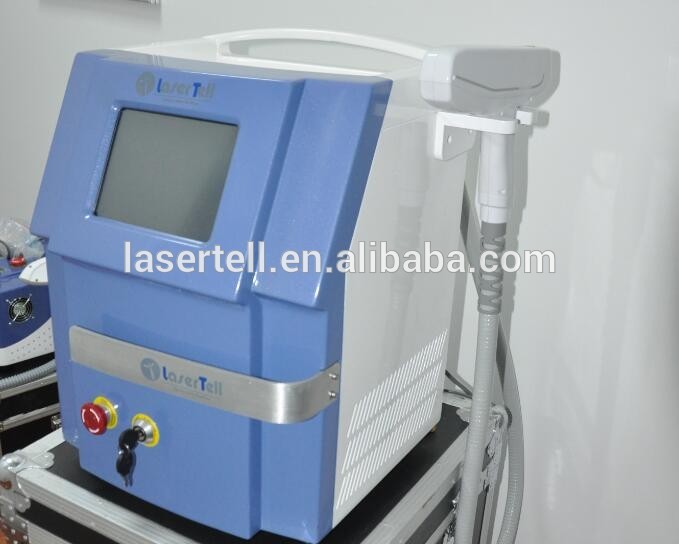

long pulse nd:yag 1064 nm 532nm nd yag laser onicomicosis tattoo removal machine

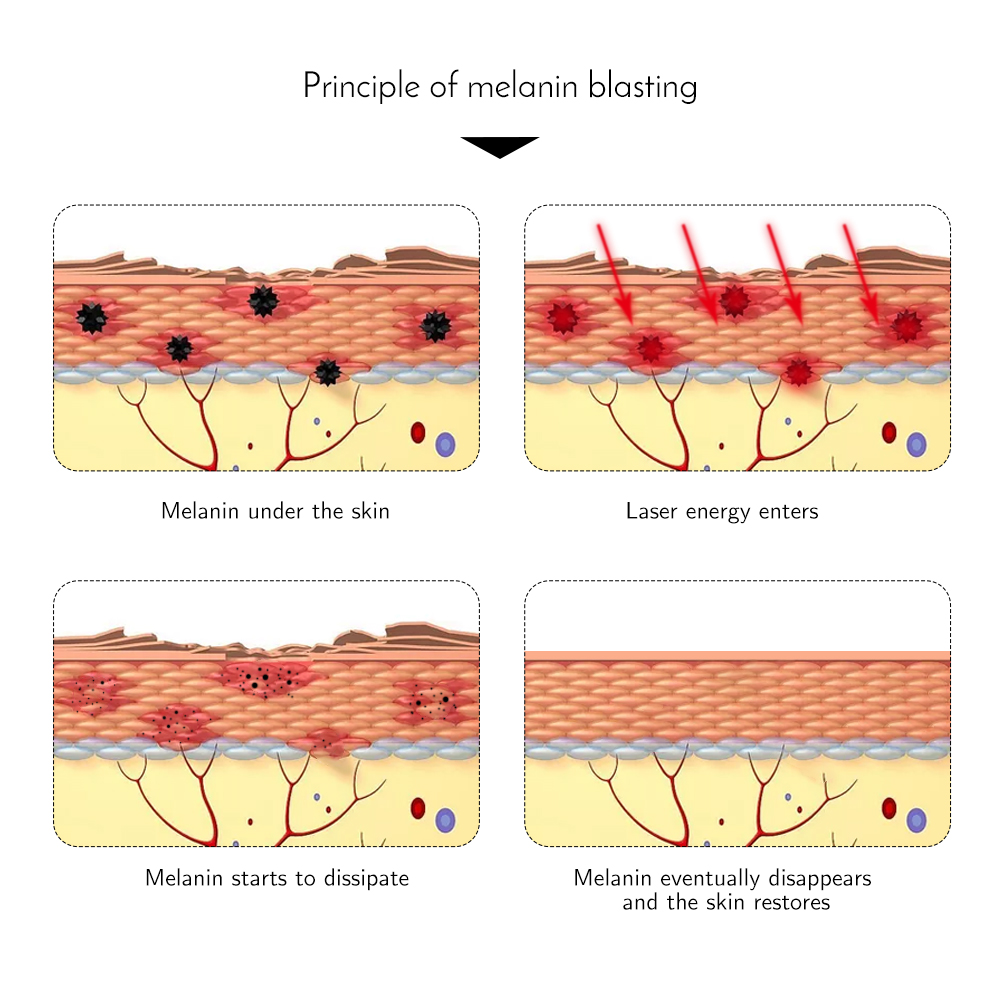

How does Nd: YAG Laser work?
Laser technology has greatly improved the ability to treat melanocytic lesions and tattoos with the rapidly pulsed
Q-switch neodymium: yttrium‐aluminium‐garnet (Nd: YAG) laser. The laser treatment of pigmented lesions and
tattoos are based on principle of selected photothermolysis. The QS laser Systems can successfully lighten or eradicate
a variety of benign epidermal and dermal pigmented lesions and tattoos with minimal risk of untoward effects.
Applications of NdMED:
1320nm: Non-ablative Laser Rejuvenation (NALR-1320nm) using carbon peel for skin rejuvenation
532nm: for treatment of epidermal pigmentation such as freckles, solar lentiges, epidermal melasma, etc.
(mainly for red and brown pigmention)
1064nm: for treatment of tattoo removal, dermal pigmentation and treating certain pigmentary conditions such as Nevus of Ota and Hori’s Nevus. (mainly for black and blue pigmention
Interface

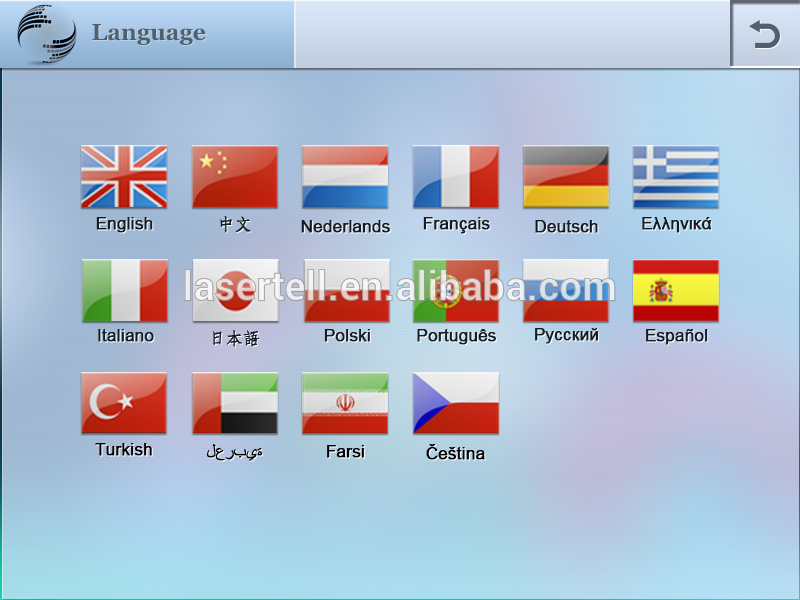

Easy and friendly operation interface with 12 kinds languages!
|
NdMED Specification
|
||
|
Peak Power
|
800W
|
|
|
Wavelength (Spectrum)
|
1064nm & 532nm (1320nm optional)
|
|
|
Energy Density (Fluence)
|
1-1000mJ
|
|
|
Spot Size
|
2-8mm
|
|
|
Pulse Repetition Rate
|
1-6Hz
|
|
|
Pulse Duration
|
<8ns
|
|
|
YAG Bar Size
|
Phai 6+7
|
|
|
Cooling
|
Air cooling
|
|
|
Stand-by Working
|
Water+Air
|
|
|
Display
|
Continuously for 12 hours
|
|
|
Electrical Requirements
|
8″ True Color Screen
|
|
|
Net Weight
|
110/230VAC, 15/20A max., 50/60Hz
|
|
|
Dimensions (WxDxH)
|
18kgs
|
|
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24 hours + 7 days after-sale service and technical supports
* Lifelong Service (no matter 3 years or 5 years, or more…)
|
Packaging
|
||
|
Packaging
|
Aluminium Package
|
|
|
Delivery
|
within 5 Working Days
|
|
|
Packaging Details
|
The normal package is Aluminium Box with EPE Foam. If export to remote countries, the wooden box will be added as well. All parts packaged available according to customers special request.
|
|
