SHR IPL laser treatment handle

Short Description:


Product Detail

Product Description

Advantages:

IPL /shr elight power supply /ipl laser machine handpiece/ipl spare parts for Sale 400W , 800W , 1200W , 1400W,2000W IPL Power SHR Power E-light power supply IPL power supply suitable for different IPL machines
perfect technical support for Chinese machine
Advantage :
1. CE certified
2. High voltage protection
3. Temperature protection
4. Small design
5. High Energy density
6. Low EMI radiation
7. highly compatible for different IPL elight machines

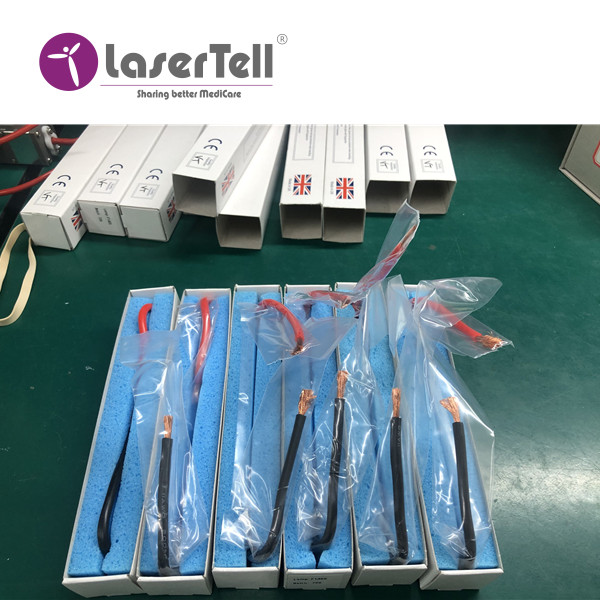

QQ图片20220704150709_副本

Technical Specifications

Dimension parameters

Lamp’s bore (ID)=5mm
Lamp’s Outside dia.(OD) =7mm
Lamp’s Arc length (AL) =60±1.5mm
Lamp’s Body length(BL) =120±2mm
O-ring centre (OC) =104mm
Pole dia. (PD) =2mm
Overall length (OAL)=480mm
wire length (WL) = 180mm

Technical Parameters

maximum average power=1,886W
maximum peak current =800A
operating voltage = 1,750V(max)
operating voltage =500V(min)
minimum trigger voltage =16KV
minimum trigger pulse=0.6μs
impedance constant= 15.84 Ko(Ω.A)
explosion energy constant = 73,680 (W./S)

Treatment Result (Real Before and After)

Detailed Images



Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* 24 hours + 7 days after-sale service and technical supports

* Lifelong Service (no matter 3 years or 5 years, or more…)

Packing & Delivery
Packaging
Packaging
Aluminium Package
Delivery
within 5 Working Days
Packaging Details
The normal package is Aluminium Box with EPE Foam. If export to remote countries, the wooden box will be added as well. All parts packaged available according to customers special request.
